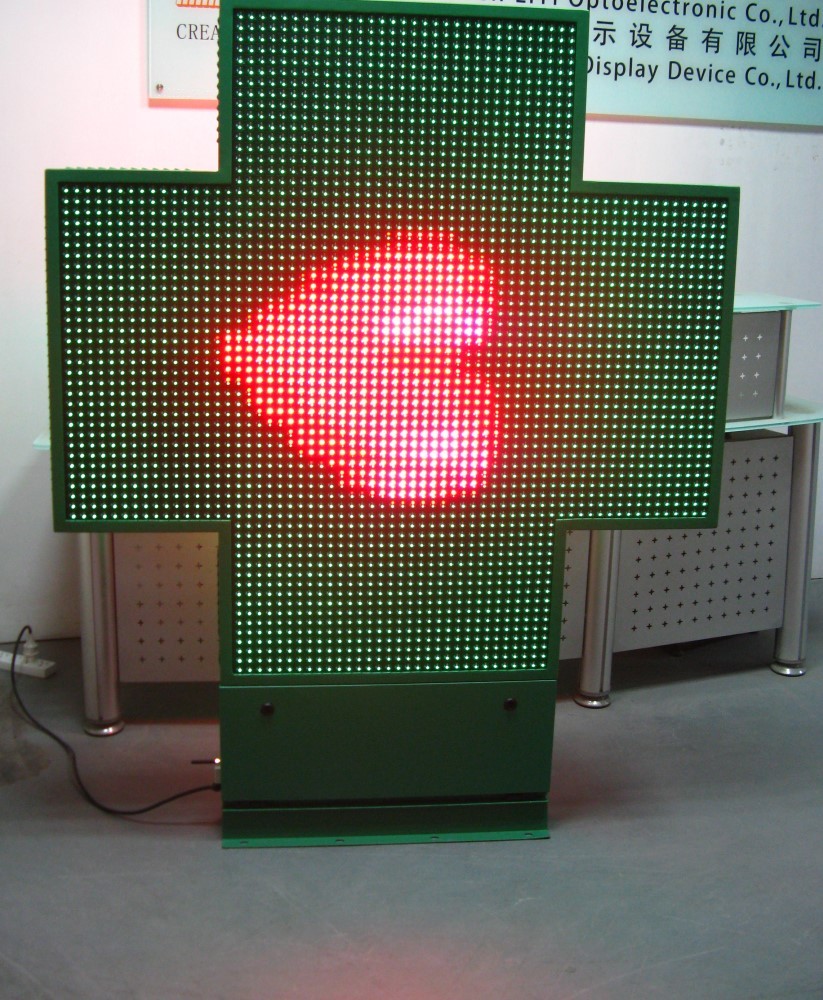

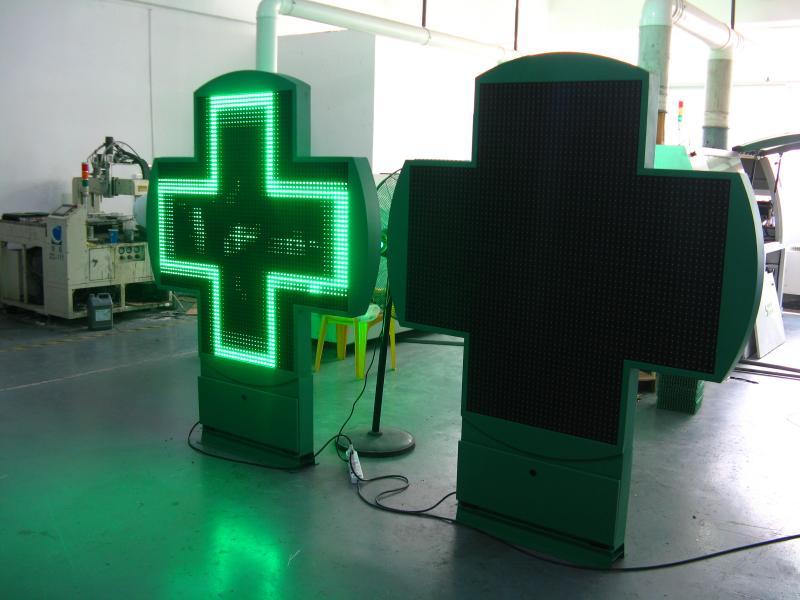

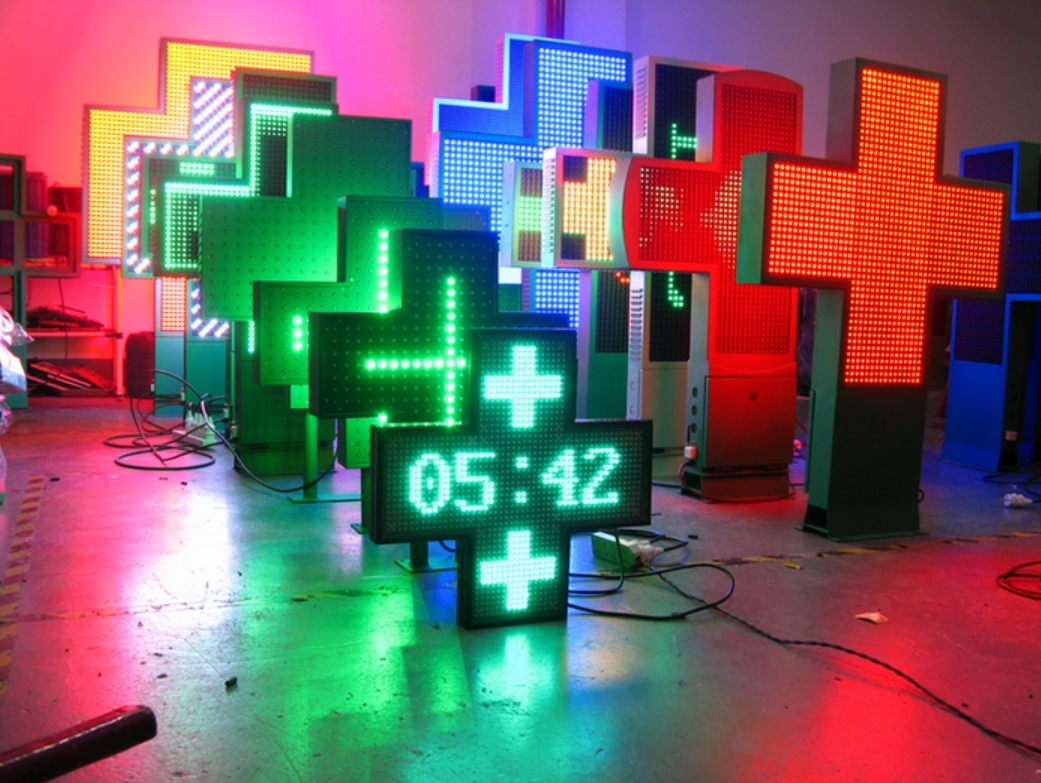

P20 RGB led pharmacy cross display double sided cross led pharmacy display shop sign 1300mm outdoor waterproof
|
Part Number |
Value |
|
Pixel Pitch |
20mm |
|
Physical Density |
61440dots |
|
Pixel configuration |
Three leds (RGB) |
|
LED lamp |
DIP504/546 |
|
Module Resolution |
16×8pixels |
|
Module Dimension |
320×160mm |
|
Cabinet Resolution |
64×64pixels |
|
Cabinet Dimension |
1690×1500×100mm |
|
Cabinet Weight |
78kg |
|
Brightness Level |
6000nits |
|
Max Power Consumption |
720W |
|
Ave Power Consumption |
240W |
|
Viewing Angle |
120°/60° |
|
Operating Power Source |
AC90-240V 50-60Hz |
|
Operating Temperature |
−20℃~+60℃ |
|
Drive Mode |
1/4 scan constant current |
|
Communication Mode |
WiFi, 4G, USB or LAN Cable |
|
Side |
One/two |
|
Life Span |
100,000Hours |
|
MTBF |
5,000Hours |
|
Protecting Rating |
IP65 |
|
Display Content |
animation, graphics, text, date, time, temperature, humidity |
|
Languages |
English, French, Spanish, Greek, Russian and Italian |
|
Operating system |
Windows (2000/XP/Vista/Win7/Win10) / Android / ios |
|
Verification |
CE, EMC, LVD, ROHS |
2) Good quality with two side display, remote control board change the display shape.
3) Animations: all leds on, flashing, wave chasing
4) High bright LED for 100,000h
5) Input voltage: AC90-240V 50-60Hz,DC 5V
6) Power consumption:240W
7) Other colors, sizes and one side available!
Waterproof pharmacy led sign display P20 led cross pharmacy sign board ip65
Features of LED Pharmacy Cross
1. waterproof, radiation proof
2. light weight, thin depth, front maintenance
3. low power consumption, high bright, easy installation
4. asynchronous control (RF/LAN/WIFI/RS232)
5. display content 2D/3D(animation, graphic, text, time, temperature)
Application
LED pharmacy cross is one kind of heteromorphic display consisting of LED cross modules and cross cabinet. The system combines with the technology of optics, microelectronics, information processing and transmission, mechanics and other technology etc. as a whole. The main application areas: the chemist's shop, pharmacy, drugstore, Apotheke, farmacia, church, hospital and crossroad.
Advantage
Enhance your pharmacy's image and attract more customers!Our LED Pharmacy Crosses feature high-brightness LEDs, ensuring clear visibility both day and night.Whether it's the classic green cross or modern programmable displays, we have the perfect solution for you.These LED Pharmacy Signs are not only energy-efficient but also easy to install and highly durable.Choose our LED Pharmacy Advertising Displays today to make your pharmacy stand out among competitors and draw in more potential customers.
