Product Description
P6 2727 led module outdoor hub75 led display module full color 192x192mm led screen modules manufacturer
P6 Outdoor Full Color Display SMD2727(1R1G1B)
|
Item |
Technical parameter |
|
|
Panel |
Dimension |
(W)192*192mm(H) |
|
Pixel pitch |
6mm |
|
|
Pixel Density |
27777/ M2 |
|
|
Pixel configuration |
1R1G1B |
|
|
LED specification |
SMD2727 |
|
|
Pixel resolution |
(W)32*32(H) |
|
|
Average power |
16W |
|
|
Panel current |
5-5.5A |
|
|
Panel weight |
0.38KG |
|
|
Cabinet&Bracket
|
Humidity |
10%-95%RH |
|
Quantity of panel |
60 |
|
|
Hub connecting |
HUB75 |
|
|
Best viewing angle |
Horizontal >170 Vertical>120 |
|
|
Best viewing distance |
5-60M |
|
|
Working temperature |
-20-+60 |
|
|
Panel power supply |
5V40A |
|
|
Screen power supply |
220VAC/50HZ+_10% |
|
|
Max power |
<40W/PANEL |
|
|
Average power |
350W |
|
|
power quantity |
200W/6PCS |
|
|
Technical parameter |
Driving device |
5124/16207Constant current drive |
|
Drive type |
1/8 Scanning |
|
|
Refresh frequency |
240-1000HZ/S |
|
|
Display color |
4096*4096*4096 |
|
|
Brightness |
5000cd/M2 |
|
|
Life span |
100000Hours |
|
|
Communication distance |
<100M |
|
Product Features
1. Adopting standard universal module size 192*192mm.
2. Using high-quality lamps that have passed the high-temperature&low-temperature tests and scanning stratification detection. They are proven cost-effective and have stable performance.
3. Standard modules with different pixel pitch share the same cabinets. Correspondingly, no adjustment of the steel structure needs to be made when our customer replaces the modules with different pixel pitch. It also helps to shorten the lead-time.
4. High brightness, high refresh rate and high protection level, suitable for outdoor media advertising and other usage scenario.
5. Equipped with our self-developed frames, masks, vertical and horizontal reinforced steel structure and efficient dust prevention. The anti-UV frame is sturdy and smooth. It ensures that the screen is flat and will not be easily deformed. Thus, the visual effect is better.
6. Our mature outdoor HD LED displays ensure our leading position in the LED industry. We have work closely with partners worldwide. We have provide satisfying products and services to our client around the world.
7. Modular design, low installation&maintenance costs, fast speed, and hot plug support.
8. Camera, cable, 3G, WIFI technology, cloud broadcast control, full network access and other mature optional solutions. Support mainstream format playback and support DVI HDMI 3G/HD/SD three-speed SDI HD display mode. It has broadcast-grade color gamut. The CCT and brightness are intelligently adjustable. The display color is uniform and the contrast is high. Thus, the graphics are colorful and natural.
9. Mainly used in outdoor advertising media, government and enterprise engineering, cultural tourism, sports competitions, image publicity and commercial real estate.

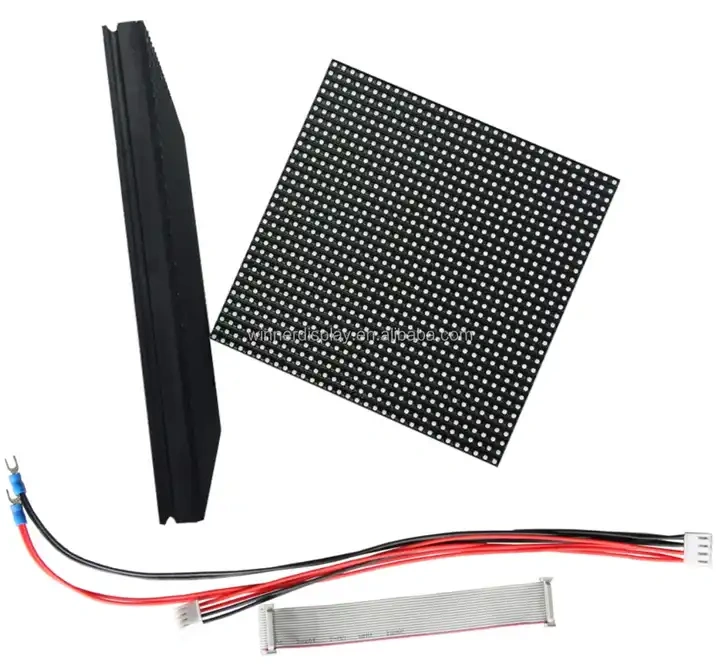

Module Pictures

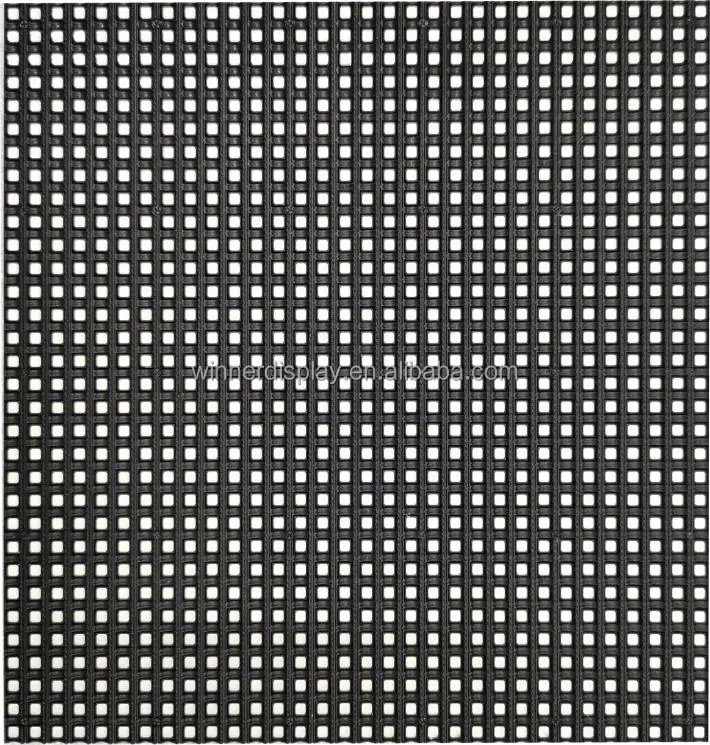

Module Features:
l Unique mask design, dark black color, high contrast.
l Unified module size 192*192mm.
l Symmetrical and even, firm and flat.
l The module adopts SMD2727 lamp, which has the characteristics of good heat dissipation and good weather resistance.
l Constant current drive, 1/8S scanning mode.
l High brightness and brightness up to 5000 cd/m2, with good light distribution curve and good angle consistency.
Application
Led display modules are widely used in advertising LED displays, stadium perimeter LED screen, mobile led display for mobile media, shopping mall LED billboard for logo showing, bank & stock exchange LED message signs for rates showing, train & bus station, airport, telecommunication LED video wall system forinformation showing and instruction, Stage performances ect.
Features
1) Brand LED chip, with super-high brightness LED, high contrast.
2) A-class LED display module frame and mask, which could endual harsh weather.
3) Fiberglass green enviromental PCB with 18mil thickness copper plating.
4) High frame frequency, wide view angle with excellent visibility and good performance.
5) With module development and distributed scan technology, high reliability.
6) Universal DC input / full range.
7) IP65 protection level, outdoor solution.
8) PC synchronous or asynchronous control (optional).
9) Use common video play software, easy to use.
10) Quick and easy assembly and disassembly.
11) High brighness and refreshrate.
12) 2 years warranty.
P6 outdoor RGB led display module led video panel P6 led modules S
Advantage
1.Perfect Display Effect:
High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.
High intensity and can be adjusted, so can meet the request of the customers according the application environment.
To pictures and character, have clear, exquisite and real display effect.
Big viewing angle to 120-150 degree at horizontal line, 120-150 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.
2.High quality
Best equality, have the excellent consistency of light.
Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Our most basic guarantee: the aging time exceeding 48 hours. Malfunction dot rate less than 0.0002. MTBF more than 5000 hours. And the EPISTAR assuring high brightness and long lifespan.
3.Attractive Factory Price
We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable. Our price is more competitive, quality is more reliable.
Packaging & Shipping
1. We provide 2 years warranty. If the item is defective, please notify us within 7 days after goods delivered.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred.
4.Support 24 Hours Online Guide & Help if you have any problems!
5. High quality original LED Chip with CE,ROHS,FCC certified.
6. We gaurantee to test every part before the delivery and gaurantee the quality!
We are specilized in LED Display, which widely in industries of advertisement, pub, airport, station, harbor, gym, banks, school, factory, post office, department store, hospital, revenue office, customer, supervising centre, etc. All the products are exported to America, Russia, Great Britain, France, Austrilia, Greece, Italy, Japan, South Korea, Taiwan, Kazakhstan, etc.
Our company owns a group of high-quality professional and technical personnel and advanced modern sophisticated production equipment. We implement strict quality management, making every LED module,LED display cabinet,Power supply ,Video processor ,LED display into competitive products, etc. From the purchasing of the raw material to manufacturing, assembling, testing, we carry out every step one by one according to the ISO9001:2000 international quality control system strictly to guarantee the quality. And our products have passed the ISO14001:2004 international environment guarantee system certificate and European CE certification.
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems.
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T, PayPal, West Union, L/C.... At least 30% deposit in advance, and the rest 70% before delivery.
Our average production time is 7-15 days, after receiving the deposit.
Q4: What's the control system?
A4: We usually use Nova, Linsn, Huidu, Colorlight, ONBON or XIXUN control system, and also we can make it as your requests.
Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence, for 8 years, what we rely on.
We have each standard process to make quality products.
If any quality failures within warranty time, we will refund you on Alibaba.
