P6 LED Pharmacy Advertising Display Full Color LED Pharmacy Programmable Sign New Design LED Pharmacy Cross Factory Price 1200mm
| Part number |
Value |
|
Pixel pitch |
6mm |
|
Pixel configuration |
1RGB(SMD2727) |
|
Pixel density |
40960 pixels for two sides |
|
Pixel resolution |
192×192dots |
|
Max brightness |
≥6000 CD |
|
View angle(horizontal) |
±60° |
|
Gray-scale |
256 grade |
|
Input voltage (AC) |
220V |
|
Work voltage (DC) |
5V |
|
Max power consumption |
1000W |
|
Average power consumption |
330W |
|
Scanning Mode |
1/8 |
|
Cooling way |
Natural cooling |
|
Control mode |
PC asynchronous control |
|
Communication mode |
WiFi / LAN / RF wireless communication (Optional) |
|
Support program |
animation, graphics, text, date, time, temperature, humidity |
|
Protection level |
IP65 |
|
MTBF |
1000h |
|
Life span |
100,000h |
|
Operation temperature |
－20～60℃ |
|
Operation humidity |
10%～90% |
|
Cabinet material |
Steel (cold rolled iron) |
|
Standard size |
1612(L) ×1200(H) ×100(T)mm |
|
Net weight |
58KG (Iron frame) |
|
Packing size |
1610(L) ×1370(H) ×210(T)mm |
|
Gross weight |
69KG (Iron frame) |

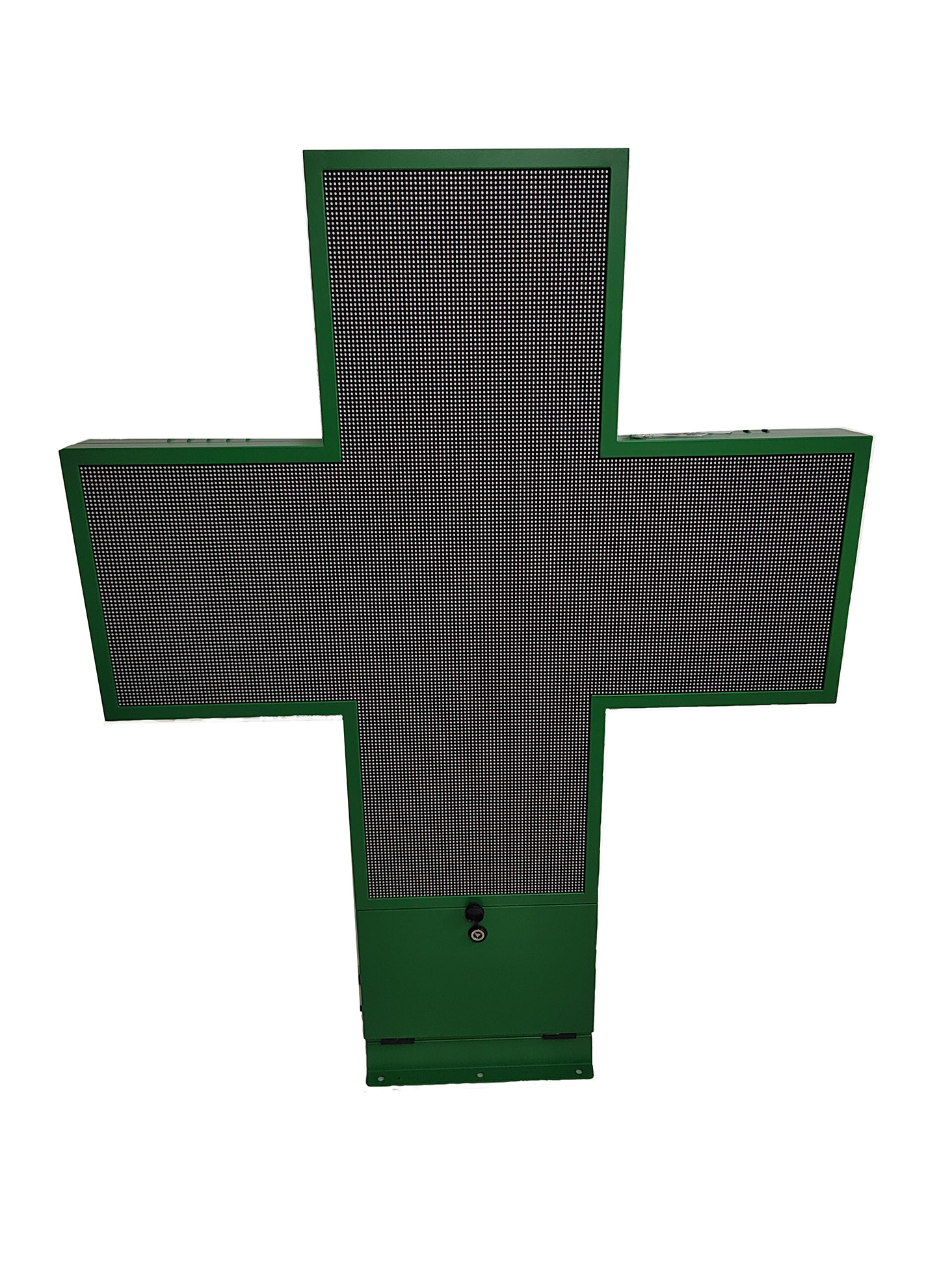

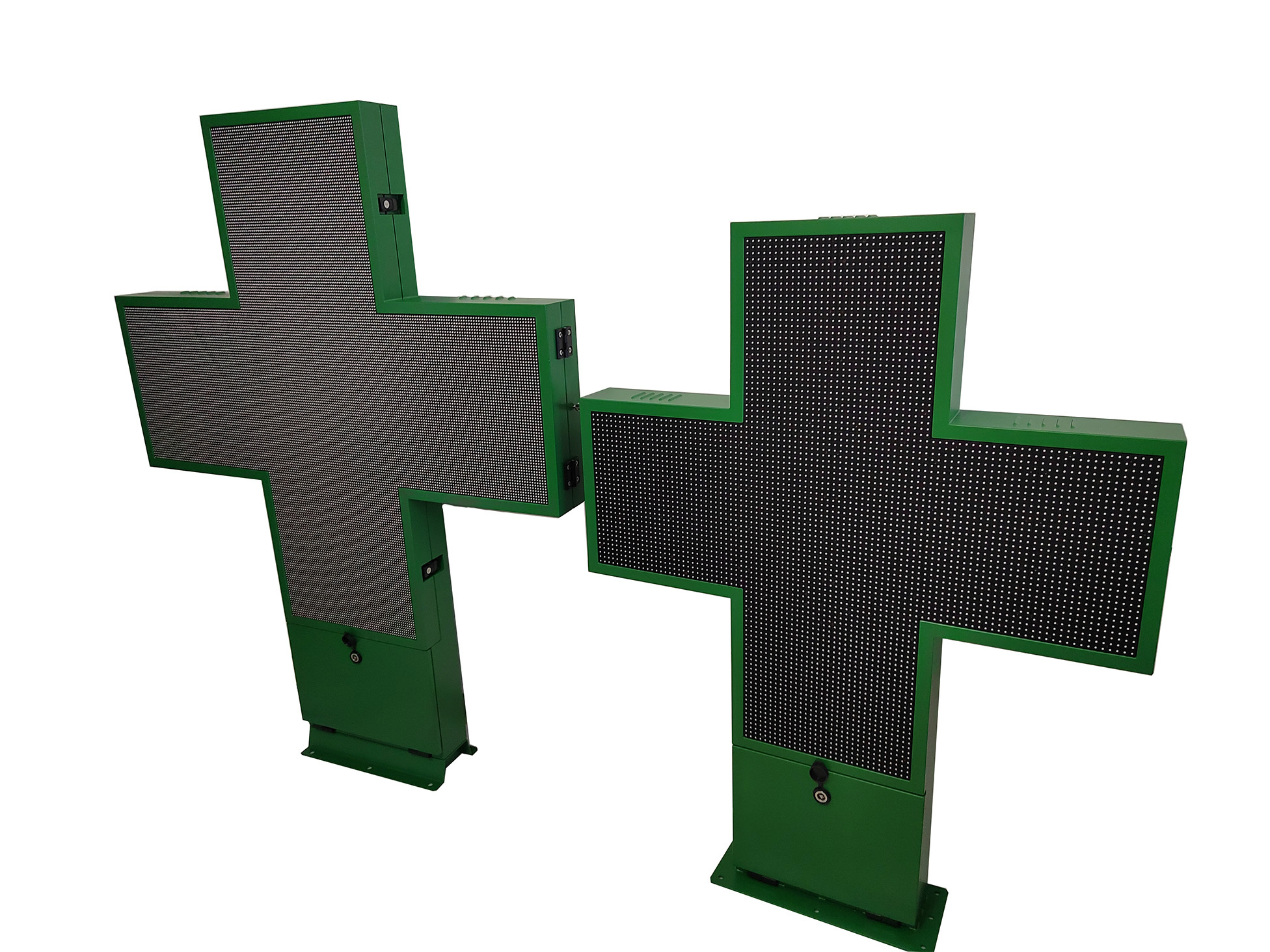

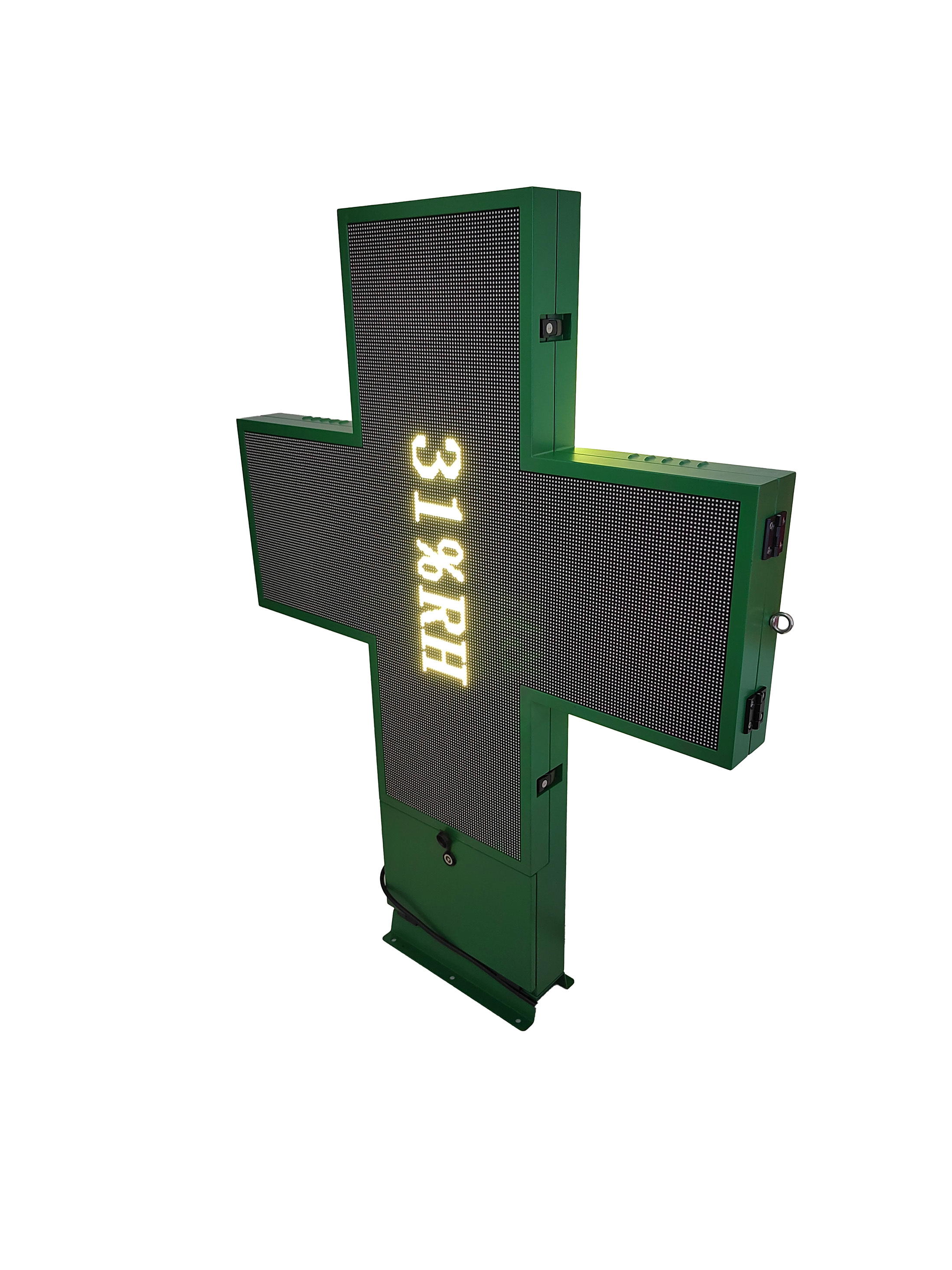

1200mm full color pharmacy cross led design pharmacy cross led display outdoor
Features of LED Pharmacy Cross
1. waterproof, radiation proof
2. light weight, thin depth, front maintenance
3. low power consumption, high bright, easy installation
4. asynchronous control (RF/LAN/WIFI/RS232)
5. display content 2D/3D(animation, graphic, text, time, temperature)
Advantage
1) For outdoor usage, pour epoxy resin on the surface, full waterproof
2) Good quality with two side display, remote control board change the display shape.
3) Animations: all leds on, flashing, wave chasing
4) High bright LED for 100,000h
5) Input voltage: AC90-240V 50-60Hz,DC 5V
6) Power consumption:330W
7) Other colors, sizes and one side available!
Full color LED pharmacy sign IP65 cross LED display for church / hospital

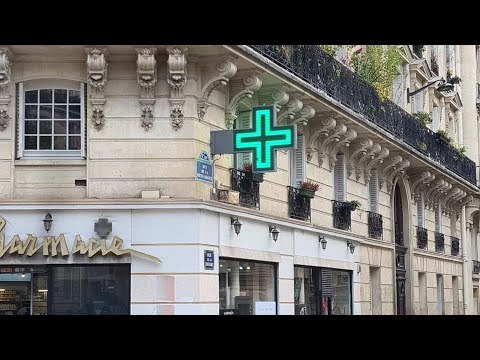

Application
LED pharmacy cross is one kind of heteromorphic display consisting of LED cross modules and cross cabinet. The system combines with the technology of optics, microelectronics, information processing and transmission, mechanics and other technology etc. as a whole. The main application areas: the chemist's shop, pharmacy, drugstore, Apotheke, farmacia, church, hospital and crossroad.
