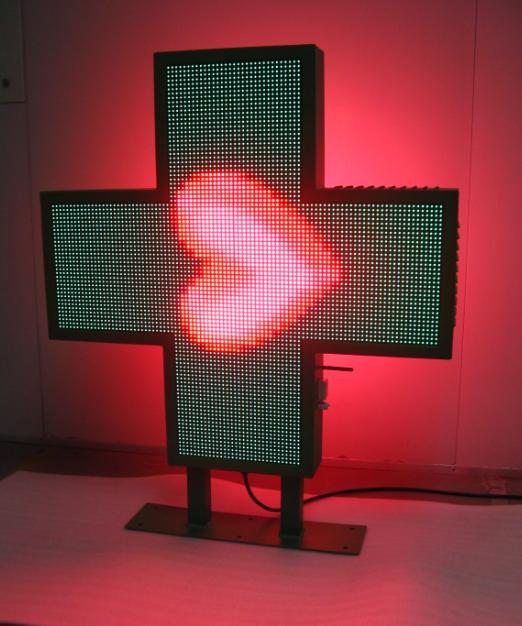

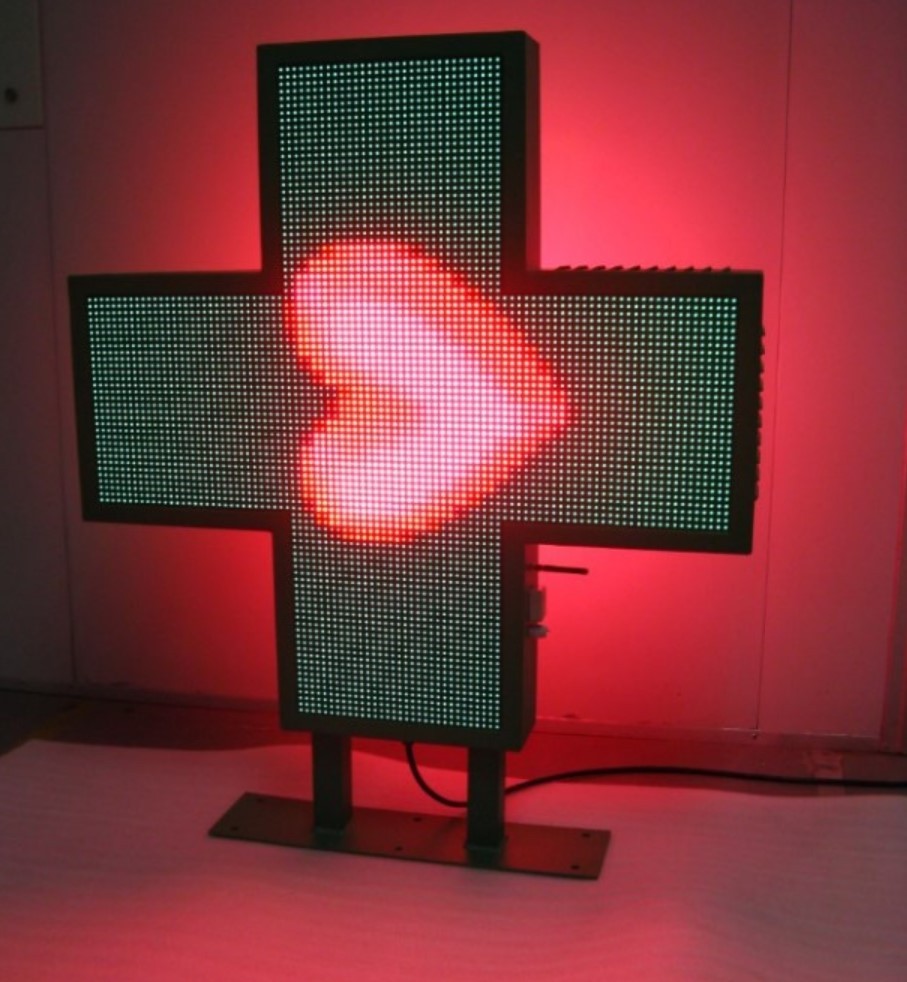

Full color led pharmacy cross sign P8 waterproof pharmacy signs double sides outdoor pharmacy cross led 800mm
|
Part Number |
Value |
|
Pixel Pitch |
8mm |
|
Physical Density |
10240dots |
|
Pixel configuration |
Three leds(RGB) |
|
LED lamp |
SMD3535 |
|
Module Resolution |
32×16pixels |
|
Module Dimension |
256×128mm |
|
Cabinet Resolution |
96×96pixels |
|
Cabinet Dimension |
1180×820×100mm |
|
Cabinet Weight |
21KG |
|
Brightness Level |
6000nits |
|
Max Power Consumption |
700W |
|
Ave Power Consumption |
200W |
|
Viewing Angle |
120°/120° |
|
Operating Power Source |
AC90-240V 50-60Hz |
|
Operating Temperature |
−20℃~+60℃ |
|
Drive Mode |
1/4 scan, constant current |
|
Communication Mode |
RS232,RJ45,RF Wireless, WIFI--Default configuration(RF Wireless) |
|
Side |
One/two |
|
Life Span |
100,000Hours |
|
MTBF |
5,000Hours |
|
Protecting Rating |
IP65 |
|
Display Content |
animation, graphics, text, date, time, temperature, humidity |
|
Languages |
English, French, Spanish, Greek, Russian and Italian |
|
Operating system |
Windows (2000/XP/Vista/Win7) / Android / ios |
|
Verification |
CE, EMC, LVD, ROHS |
1) For outdoor usage, pour epoxy resin on the surface, full waterproof
2) Good quality with two side display, remote control board change the display shape.
3) Animations: all leds on, flashing, wave chasing
4) High bright LED for 100,000h
5) Input voltage: AC90-240V 50-60Hz,DC 5V
6) Power consumption:700W
7) Other colors, sizes and one side available!

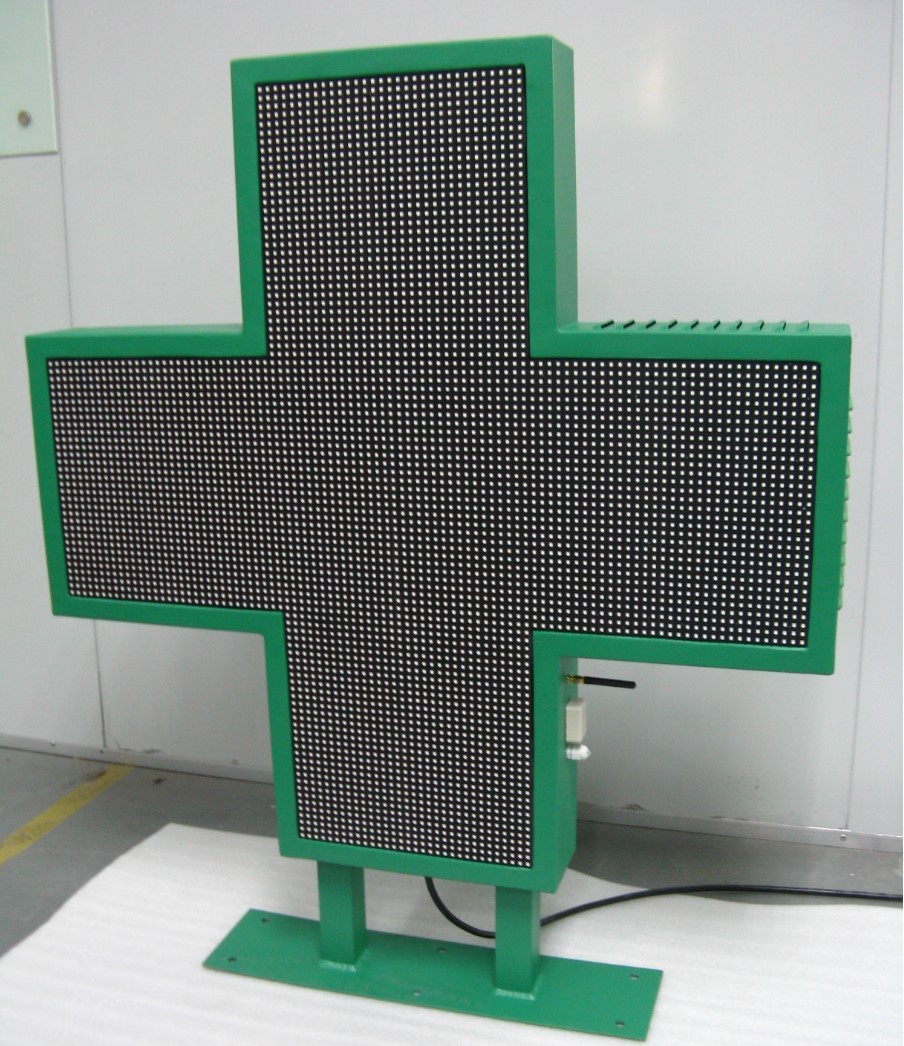

Waterproof outdoor cross led sign display P8 full color farmacia cross
Features of LED Pharmacy Cross
1. waterproof, radiation proof
2. light weight, thin depth, front maintenance
3. low power consumption, high bright, easy installation
4. asynchronous control (RF/LAN/WIFI/RS232/ USB)
5. display content 2D/3D(animation, graphic, text, time, temperature)

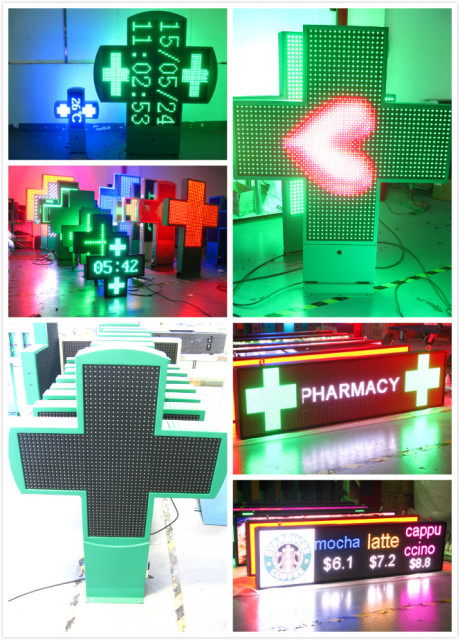

Full color LED pharmacy sign IP65 cross pharmacy LED display for church / hospital
Application
LED pharmacy cross is one kind of heteromorphic display consisting of LED cross modules and cross cabinet. The system combines with the technology of optics, microelectronics, information processing and transmission, mechanics and other technology etc. as a whole. The main application areas: the chemist's shop, pharmacy, drugstore, Apotheke, farmacia, church, hospital and crossroad.
